Hettich SAH 216 Cabinet Hanger Set Left & Right
Regular price
£13.99
inc. VAT
Couldn't load pickup availability
Why not share this product on your favourite social networks:
Hettich SAH 216 Cabinet Hanger Set Left & Right
- For use on the back of the rear panel
- For rail and hook suspension
- Load capacity: 55 kg / each in accordance with EN 15939 in test frame A

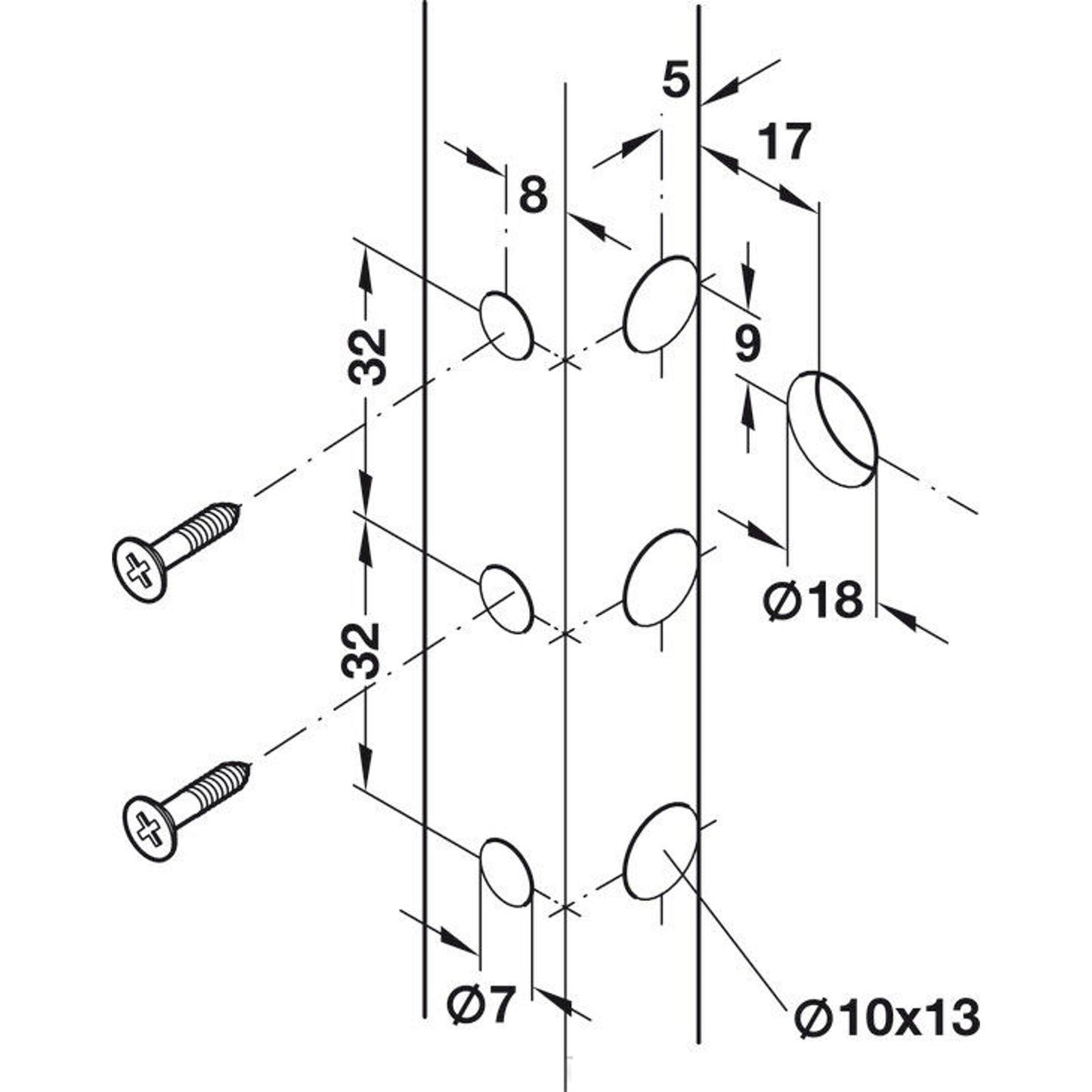

- Attached to the side panel with 3 side pins and screwed into rear panel groove
- Suitable for use with rear panel recess of 16 mm and over
- Fast, convenient height adjustment at sturdy adjustment screw and gear: ± 8 mm
- Depth adjustment: 25 mm max.
- Side adjustment: ± 3 mm for hook suspension, ± 7.5 mm for rail fixing
- Adjustment screws are protected from becoming unscrewed accidentally
- Lift off height: 7.5 mm
- Hook suspension: the shape of the hook prevents the cabinet from slipping off
- Suitable for use with B, H or M type suspension rail
- Galvanised steel - fully recyclable
- MUST ALWAYS be screwed into the cabinet body side.
- Optional "lift off guard" function by means of special screw
